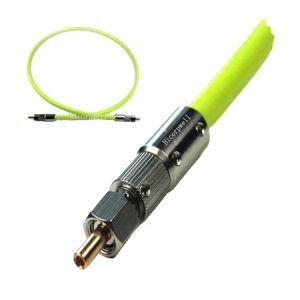

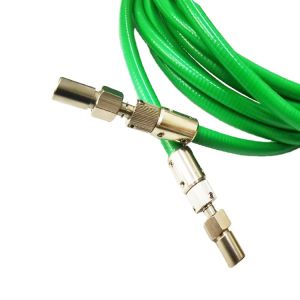

China D80 Fiber Optic Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished D80 Fiber Connectors wholesale

D80 Fiber Optic Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished D80 Fiber Connectors

Name: D80 Fiber Optic Cable with 200μm to 800μm Core Diameters Featuring Sapphire and Air Gap Protection and Precisely Polished D80 Fiber Connectors
Brand: Hicorpwell
Price: 238.98 USD

Ask Latest Price

Video Channel

Model Number :D80

Place of Origin :Guangdong, China

Brand Name :Hicorpwell

MOQ :1

Price :$238.98-262.72

Fiber-core diameters :200μm, 300μm, 400μm, 600μm, 800μm

Cable length :3m, 5m, 10m, 20m (customizable)

Core material :Pure quartz (Low-OH)

Cladding material :Doped quartz material

Numerical aperture :0.22

Operating wavelength :400-2400 nm

Protection tube diameter :8 mm

Cladding diameter :500μm, 750μm

Coating diameter :780μm, 1100μm

Fiber type :Step-index fiber

Transmission efficiency :>90%

Max laser power :600W

Connector type :D80 with sapphire

Heat dissipation :Copper alloy ferrules

Package size :25x20x1 cm

Contact Now

Add to Cart

View Product Description

Products Description

General info on D80 High Power Laser Cable

For a better protection, it introduces a sapphire and air gap into the D80 fiber connectors so that the D80 fiber cables can sustain laser power up to hundreds of watts in a single fiber with more than 90% transmission efficiency depending on the fiber core diameters and laser specifications. It’s an excellent choice for fiber-coupled laser systems in avelength ranges from visible to near infrared (VIS-NIR, typically 400-2400 nm), such as high-power semiconductor lasers, solid-state lasers, and fiber lasers.

General info on D80 High Power Laser Cable

Areas of application include high power laser transmission, laser welding, laser cutting, and so onD80 fiber cables for high-power laser delivery are available in different fiber-core diameters from 200 microns to 800 microns (200μm, 300μm, 400μm, 600μm, 800μm). Heat dissipation plays a crucial role in the coupling of high-power.

In principle, Hicorpwell D80 fiber cables use step-index double-clad fibers and ferrules of good heat-conducting copper alloys for laser transmission.

D80 Introduction	The Hicorpwell D80 filber has precision grinding end face, large core diameter, air gap and sapphire D80 connector. It can transfer high power laser to 600W by single fiber. Transmission can reach more than 90% stably. The connector adopts no glue technology, which can improve the heat dissipation effect and service life, and meet the requirements of high power transmission such as laser welding and cutting.
Product model(µm)	ST200E	ST300E	ST400E	ST600F
Core diameter(µm)	200	300	400	600
Cladding diameter(µm)	500	500	500	750
Coating diameter	780	780	780	1100
Core material	Pure quarta(Low-OH)
Cladding material	Doped quartz material
Numerical aperture(NA)	0.22
Two cladding numericail(NA)	NA 0.37 OR NA 0.46
Operating wavelength(nm)	400-2400
Length(m)	3, 5, 10(the default length is 5 meters, which can be customized)

Brief Info on D80 fiber cables

D80 fiber cables for high-power laser delivery are available in different fiber-core diameters from 200 microns to 800 microns(200μm, 300μm, 400μm, 600μm, 800μm).

Heat dissipation plays a crucial role in the coupling of high-power. In principle,
Hicorpwell D80 fiber cables use step-index double-clad fibers and ferrules of good heat-conducting copper alloys for laser
transmission.

FEATURES OF D80 FIBER CABLES
* Sapphire and Air Gap Protection
* Precisely Polished D80 Fiber Connectors
* Step-index Fiber Optimized for VIS-NIR
* 0.22NA as Standard; Others on Request

Specifications of D80 Fiber Cables for High-Power Laser
Fiber Core Diameter (μm)	200, 300, 400, 600, 800
Fiber Core Material	High purity fused silica (Low-OH)
Fiber Type	Step-index fiber as standard; Graded-index fiber on request
Numerical Aperture (NA)	0.22 as standard, others on request
Operating Wavelength (nm)	400-2400
Protection Tube Diameter (mm)	8
Cable Lengths (m)	3, 5, 10, 20, etc. (customizable)

Product Features:

1. Sapphire D80 connector with air gap,

2. High quality stainless steel jacket,

3. Large core diameter.

Main Application:

1. High power laser transmission,

2.L aser welding and cutting,

3. Laser marking,

4. Atmospheric spectrum measurement,

5. Laser cleaning.

Features:

Sapphire protected connector; Protective layer of high quality stainless steel armored hose;
Large core power fiber; Advanced non adhesive process; A variety of specifications optional.

Application:
High power laser flexible transmission;Laser welding and cutting;
Laser marking;Atmospheric spectrum measurement;Laser cleaning.
